There are different kinds of wind turbine tower parts to support wind turbine tower construction and wind turbine tower further maintenance. As a professional wind turbine tower manufacturer, Anyang Machinery provides complete wind turbine tower solution with all kinds of wind turbine tower spare parts, such as onshore wind turbine tower foundation components and wind turbine tower internals.

For onshore wind turbine towers, the foundation is one of the main parts for wind turbine tower. We have seen many wind turbine tower collapse accidents happens, and the wind tower foundation have been totally uprooted. Therefore, high strength wind turbine tower foundation is very important for wind turbine tower stiffness.

Onshore Wind Turbine Tower Foundation Components

Wind turbine tower anchor cage is the foundation of onshore wind turbine towers. It includes an anchor plate, a load distribution plate, and several anchoring bolts to connect the plates.

Wind Turbine Tower Foundation Components

Wind Turbine Tower Anchor Plate

Material: carbon steel

Dimension: customized

Thickness: 3 – 100mm

Performance: corrosion resistance

Standard: ANSI / ASTM / DIN / GB

Certification: ISO9001

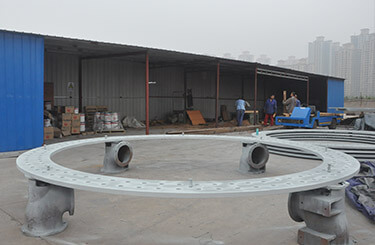

anchor plate and load distribution plate for wind tower foundation

Wind Turbine Tower Load Distribution Plate

Material: carbon steel

Dimension: customized

Thickness: 3 – 100mm

Performance: corrosion resistance

Standard: ANSI / ASTM / DIN / GB

Certification: ISO9001

anchor plate and load distribution plate for wind tower foundation

Wind turbine tower anchoring bolts

Material: carbon steel

Standard: ANSI / ASTM / DIN / GB

Grade: 8.8 / 10.9

Falling load: 1035 N/mm²

Dimension: customized

Inside structure: solid / hollow

Performance: corrosion resistance

Certification: ISO9001

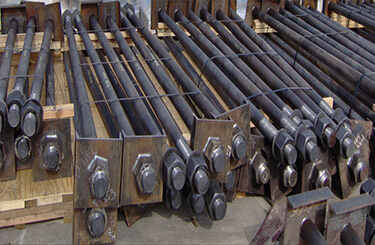

a picture of anchoring bolts for wind tower foundation

Wind Turbine Tower Flanges

Normally, a complete steel wind tower is about a hundred meters high. In order to transport the wind turbine tower onsite, the wind tower manufacturers makes several wind tower sections, and assemble them together onsite. Therefore, in wind turbine tower manufacture process, there are flanges on the ends of each wind tower section. Wind tower flanges are the connecting parts of wind turbine towers. It is a big ring with multiple holes equally distribute on it.

Wind Tower Flanges

Wind Tower Flanges

Materials: Q345C, Q345D, Q345E or other standard carbon steel

Standard: ANSI, JIS, DIN, etc

Dimension: customized

Connection Method: Welded

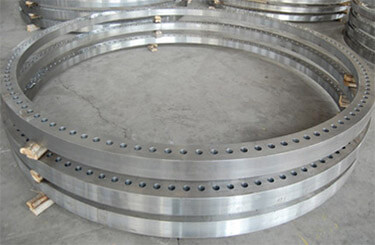

wind turbine tower flanges in factory

Anyang Machinery provides complete customized wind turbine tower solutions, the dimension of wind turbine tower (include wind tower flanges), foundation structure, and wind turbine tower internals will be manufactured fully based on customers’ requirements. If you have any questions about wind turbine tower anchor cages and wind tower flanges, please feel free to contact us.
